Lubricators
WSI knows that the difference between a clean well intervention and a costly one starts with the equipment and crew you put on location
Hydraulic Lubricators
Control That Holds
Under Every Condition
TRAILER MOUNTED, TENBUSCH POWERED, AND READY TO MOBILIZE

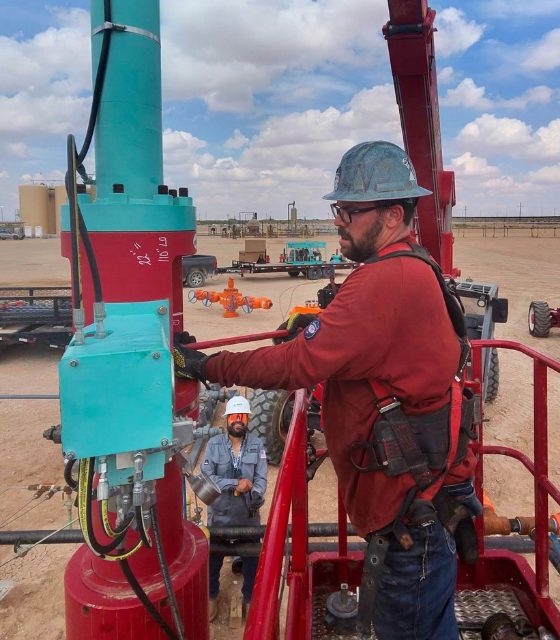

WSI operates a 15K hydraulic lubricator service built for high-pressure live well interventions. Trailer mounted with a 12ft stroke and adaptable from 5"-10K to 7"-15K, the system runs on a Tenbusch hydraulic power unit and is supported by 26-ton cranes and high-pressure test units. Our service specialists carry over 30 years of worldwide lubricator experience.
Need a crew on location fast? Reach out to our team.
Equipment Specs
- 15K hydraulic lubricator
- 12ft stroke
- Adaptable from 5"-10K to 7"-15K
- 2" rod, polished and laser etched for precision
- Trailer mounted with control units
Support Equipment
- 26-ton cranes
- High-pressure test units
- Multiple size tubing hangers
- Service trailers
- Tenbusch hydraulic power units
Service Capabilities
- Back pressure valve installations
- Tubing hanger installations
- Live well pressure control
- Valve removal and installation
- 24/7 critical well services
Manual Lubricators
Rated to 5,000 PSI. Built for well control jobs where hydraulic power isn’t needed or available on location.
VR Lubricators
Rated to 5,000 PSI. Configured for slickline and wireline work requiring a vertical riser setup.
Success Story
Saved Thousands Per
Well by Snubbing
Hangers on a Live Well
NO SHUT-IN. NO DOWNTIME WASTED.

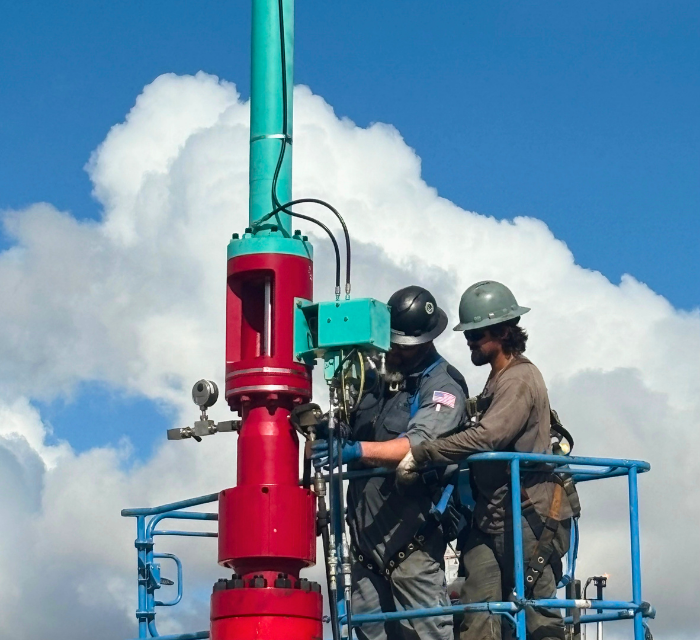

A major operator needed tubing hangers snubbed on a live well across multiple locations in the Permian. Shutting the well in wasn't an option, every hour of downtime had a cost. WSI mobilized its 15K hydraulic lubricator, trailer mounted and Tenbusch powered, with a crew that has been running live well interventions for over 30 years. The hangers were snubbed cleanly, the well stayed live, and the operator saved thousands per well compared to conventional installation methods.
